Power System

Disconnectors mainly used for overhead lines, third rail or substations, for DC/AC applications, off load or on load.

Voltage: up to 25kV AC or 4kV DC
Current: up to 12000 A

DISCONNECTORS GENERIC BROCHURE

Generic brochure of some disconnectors manufactured in the past

BROCHURE GENERICA SEZIONATORI

ONE POLE DISCONNECTOR CI/T TYPE

CI/T hinge isolator with central insulating rod for indoor vertical mounting on walls or boards

SEZIONATORE CI/T

DISCONNECTOR SOEI / SVEI290

Air insulated MV outdoor isolator type SOEI / SVEI 290

SEZIONATORE SVEI290

DISCONNECTOR SVE255

Three poles knife disconnector for outdoor installation

SEZIONATORE SVE255

DISCONNECTOR SRE243

Three poles rotative disconnector for outdoor installation

SEZIONATORE ROTATIVO SRE243

DISCONNECTOR SVE493

25–52 kV one pole outdoor isolator (vertical installation)

SEZIONATORE UNIPOLARE SVE493

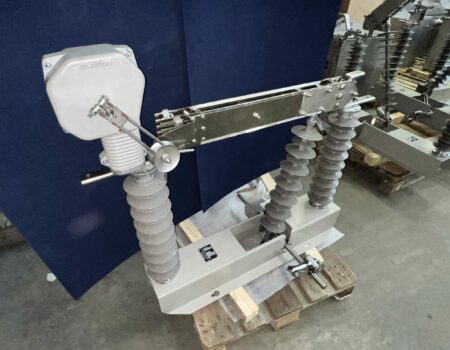

ON-LOAD SWITCH ISV-E493

Outdoor on load switch disconnector

SEZIONATORE CON AMPOLLE ISV-E493

FUSE HOLDER BPF

25kV one-pole outdoor fuse holder

BASE PORTA FUSIBILE

SIX POLES DISCONNECTOR SVE492

Six poles outdoor isolator 12 kV - 2000/2500/3000 A

SEZIONATORE ESAPOLARE SVE492

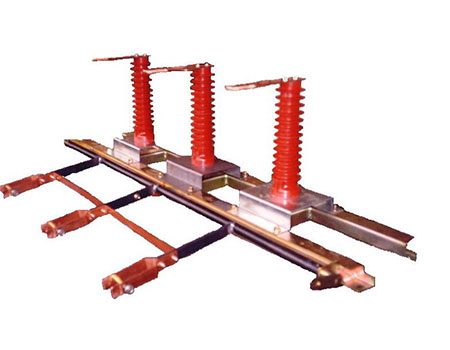

DISCONNECTORS STI / STE

Earthing switches for indoor / outdoor / switchboards

SEZIONATORI DI TERRA STI/STE

DISCONNECTOR SUE-C TYPE (with horn)

Single-pole outdoor disconnector ‘oscillating’ type mainly used for electrical substations to supply subway, light rail, railway, ...

SEZIONATORE CON CORNETTI SUE-C

HV DISCONNECTOR SR3E560

Rotating outdoor isolator with double disconnection for voltage 72,5-245 kV

SEZIONATORE AT SR3E560

OUTDOOR DISCONNECTOR SUE TYPE

750V outdoor disconnector for tramway power supply

SEZIONATORE SUE (PICCIONAIA)

DISCONNECTORS HD-I TYPE

Hinge indoor disconnector for high currents

SEZIONATORE HD-I

HINGE BOX HD-B

Hinge box disconnector

SEZIONATORE CON CASSETTA HD-B

ON LOAD SWITCH-DISCONNECTOR HD-SD

High current switch-disconnector (on load opening)

SEZIONATORE SOTTOCARICO HD-SD

FORK PLUG ER1129

Fork plug for moving contact

PINZA DI POTENZA ER1129

VOLTAGE RELAY AC1247

Electronic voltage monitoring relay that provides reliable monitoring of voltages into DC traction system

VOLTAGE RELAY AC1247

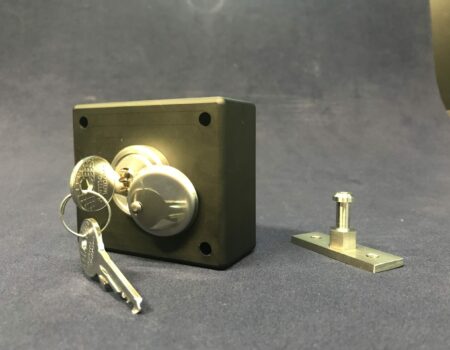

LOCKING BOX

Lock used as a door lock as well as for other interlocking systems

LOCKING BOX

Devices
MOTORIZED DEVICE COEM TYPE

Outdoor motorized device

comando motorizzato COEM

MANUAL DEVICE COE TYPE

Outdoor manual device

comando manuale COE

SWITCHBOARD OPERATING DEVICE CQI915

Device for indoor panel installation (manual or motorized)

comando da quadro CQI
